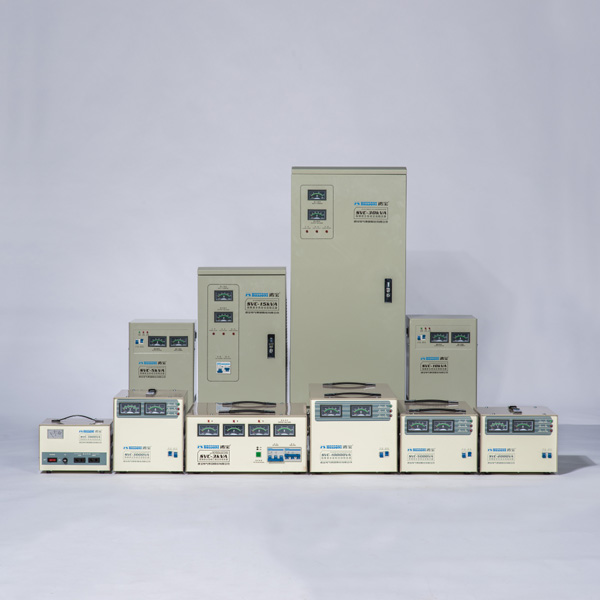

SVC single - phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant

products,  made  up  of contact auto voltage regulator, servo motor, automatic control circuit,  etc.  When the power
network voltage fluctuates or the load varies, automatic sampling control circuit  will  send signal to drive  the servo
motor  which  can  adjust  the position  of carbon  brush  of  auto  voltage  regulator,  then, the output voltage will be
adjusted to rated value and get a steady state.

This  voltage  stabilizer  is  of  common  type ,  it  has  the  function  of  connecting  through  the  commercial power.
Compared  with  other  voltage  stabilizers,  it  has  the  advantage  of  great  variety ,  complete specification, nice
appearance and obvious  features of high efficiency, no wave distortion, reliable performance, working continually
for long time, besides, it is provided with short time delay and over voltage protection, and the long  time delay and
under  voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage
supply, widely used in any locations requiring electricity and ensures your power

device can run normally.



          For office equipment, testing equipment, medical equipment, industrial automation equipment, household

appliance, lighting system, communication system, etc.

	Spec (KVA)			Weight (kg)	Qty
Single -phase two -wire (desk type)	SVC-0.5			6.0	4
	SVC-1			7.0	4
	SVC-1.5			8.0	4
	SVC-2			14	2
	SVC-3			16	2
	SVC-5			27	1
	SVC-8			40	1
	SVC-10			41	1
Single -phase two -wire (vertical type)	SVC-5			28.5	1
	SVC-8			39	1
	SVC-10			40	1
	SVC-15			75	1
	SVC-20			110	1
	SVC-30			165	1
	SVC-45			200	1

	Spec (KVA)			Weight (kg)	Qty
Three -phase four -wire	SVC-1.5			18	1
	SVC-3			23	1
	SVC-4..5			27	1
	SVC-6			39	1
	SVC-9			48	1
	SVC-15			85	1
Three -phase four -wire	SVC-20			124	1
	SVC-30			131	1
	SVC-45			197	1
	SVC-60			260	1
