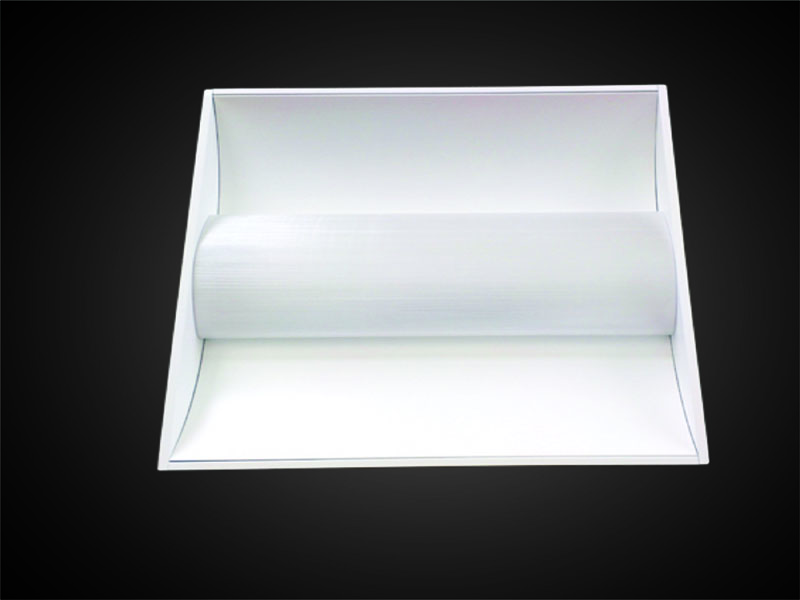

LED TROFFER - LDI03 Series

Inquiry

General

HOSSONI LDI03 series is an energy efficient commerci

-al fixture that features high lumen and glare reduction.
The LED in corporate a full metal fixture liner inside the
housing with a high impact diffuser.
HOSSONI LDI03 series is suitable for interior applications
and can be placed on traditional office T-rail.

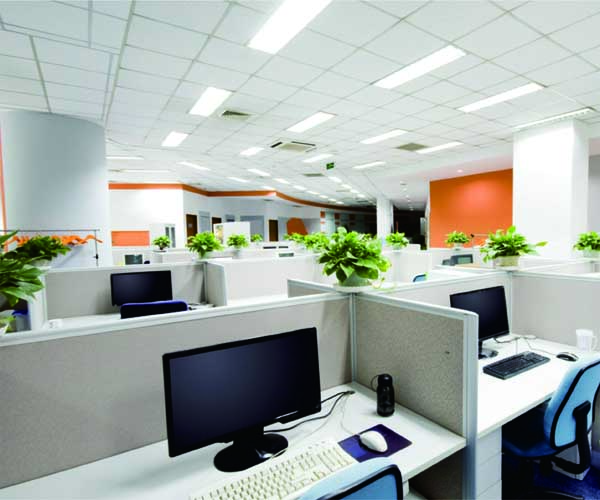

HOSSONI LDI03 series has been designed to operate
commercial institutions such as hospitals, offices, schools.
It has a stylish design with soft lumens that provides a
comfortable working area.

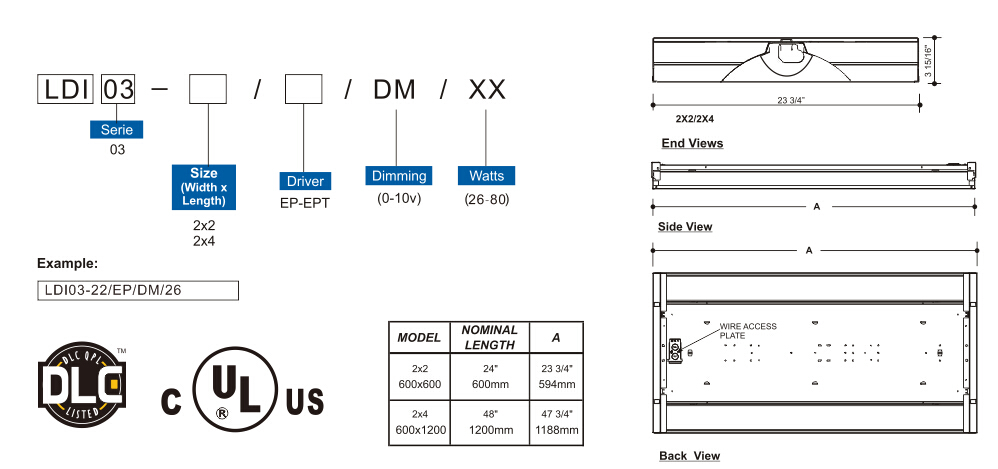

Model:LDI03-22/EP/DM/ 26、42、50

Specifications
MODEL	LDI03-22/EP/DM/26、42、50
WATTS	26W	42W	50W
NOMINAL LUMENS	2516/2639	3658/3830	4335/4540
EFFIENCY (LPW)	96.8/101.5	87.1/91.2	86.7/90.8
CCT	4000K/5000K	4000K/5000K	4000K/5000K
CRI	Ra > 80	Ra > 80	Ra > 80
POWER FACTOR	98	98	98
INPUT VOLTAGE	120-277V	120-277V	120-277V
COVER MATERIAL	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate
L80	>50,000	>50,000	>50,000

Model:LDI03-24/EP/DM/ 42、58、68、80

Specifications
MODEL	LDI03-24/EP/DM/26、42、50
WATTS	42W	58W	68W	80W
NOMINAL LUMENS	4145/4342	5365/5620	6072/6365	68647184
EFFIENCY (LPW)	98.7/103.4	92.5/96.9	89.3/93.6	85.8/89.8
CCT	4000K/5000K	4000K/5000K	4000K/5000K	4000K/5000K
CRI	Ra > 80	Ra > 80	Ra > 80	Ra > 80
POWER FACTOR	98	98	98	98
INPUT VOLTAGE	120-277V	120-277V	120-277V	120-277V
COVER MATERIAL	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate
L80	>50,000	>50,000	>50,000	>50,000
