SVC-EClass: VOLTAGE STABILIZER(AVR)
P07+SVC-E系列
Hits: 2130 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

SVC-E
Inquiry
General

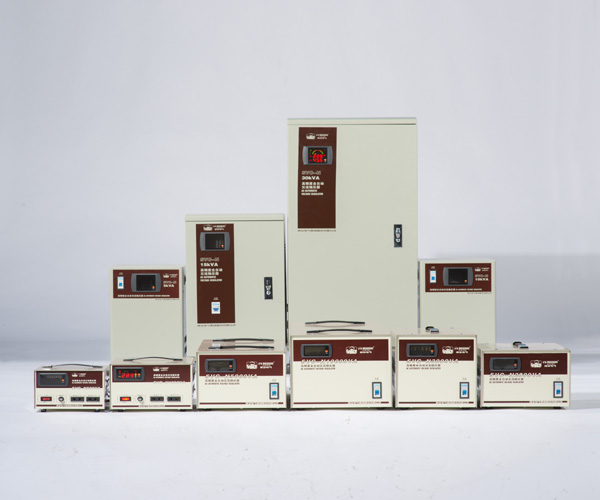

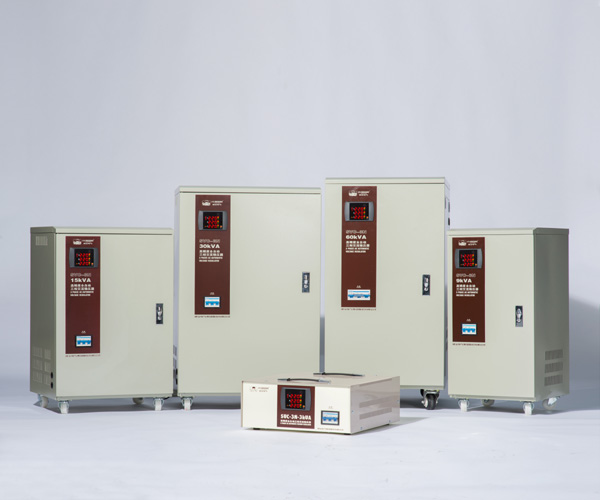

          SVC-E(Digital type) series of Voltage Stabilizer has a distinguished feature of using digit displaying technology,and it

has the ability of displaying input volatege, output voltage, working current,protection status,loading percentage and
so on.  It also has a wide protective functions of delaying, over-voltage, under-voltage, over-loading as well as auto
-alarming etc. ( Note: 2KVA and above only have the function of delaying,over & under voltage protections)
Application


          For office equipment,  test equipment, medical equipment, industrial automation equipment,

household appliance, lighting system, communication system, etc.



Performance
Single-phase input voltage
140V-250V
Frequency
50/60Hz
Single-phase output voltage
0.5KVA-3KVA 220V and 110V
5KVA-30KVA 220V
Adjustable time
Three-phase input voltage
Phase voltage 160V-250V
Wire voltage 277V-430V
Ambient temperature
Waveform distortion
Three-phase output voltage
Phase voltage 220V
Wire voltage 380V
Load power factor
Dielectric strength
Accuracy of voltage stabilization
Insulation resistance
0.8
1500V/1min
Model and spec
Spec
(KVA)
Product size
D*W*H(cm)
Package size
D*W*H(cm)
Weight
(kg)
Qty
/Ctn
Single phase
two wire
(Desk Type)
SVC-E0.5KVA
17x19x13
44x25x35
5
4
SVC-E1KVA
20x22x16
50x28x40
7
4
SVC-E1.5KVA
20x22x16
50x28x40
8
4
SVC-E2KVA
26x24x19
34x32x29
14
1
SVC-E3KVA
29x22x24
37x32x34
16
1
SVC-E5KVA
46x24x19
54x32x27
27
1
SVC-E8KVA
57x27x24
71x40x35
40
1
SVC-E10KVA
57x27x24
71x40x35
41
1
Single phase
two wire
(Vertical type)
SVC-E5KVA
30x24x43
31x39x48
28.5
1
SVC-E8KVA
30x25x45
40x37x56
39
1
SVC-E10KVA
30x25x45
40x37x56
40
1
SVC-E15KVA
41x33x65
52x45x76
75
1
SVC-E20KVA
41x33x65
52x45x76
110
1
SVC-E30KVA
53x43x102
66x56x112
165
1
SVC-E45KVA
53x43x102
66x56x112
200
1
Three phase
four-wire
SVC-E-3/1.5KVA
37x36.5x17.5
52x48x28
18
1
SVC-E-3/3KVA
39x38.5x17.5
54x50x31
23
1
SVC-E-3/6KVA
37.5x28.5x68
48x40x78
27
1
SVC-E-3/9KVA
35.5x33x79
48x45x90
48
1
SVC-E-3/15KVA
38.5x43.5x79
55x51x90
85
1
SVC-E-3/20KVA
43.5x51.5x97
64x55x106
124
1
SVC-E-3/30KVA
43.5x51.5x97
64x55x106
131
1
SVC-E-3/45KVA
68x43x102
78x55x110
197
1
SVC-E-3/60KVA
68x43x102
90x67x115
260
1
