Product detailed material (PDF)

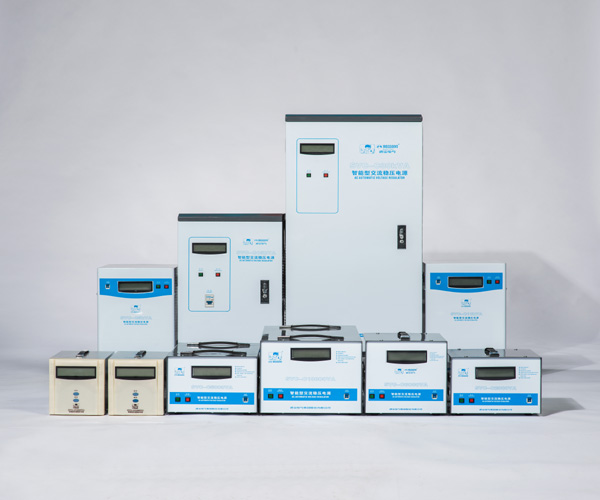

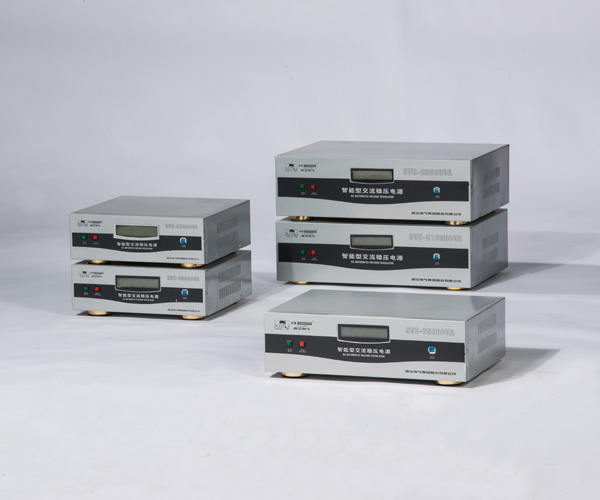

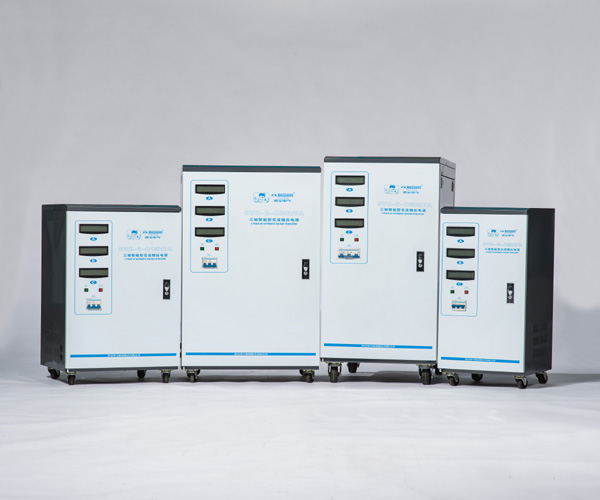

SVC-C(LCD type) series intelligent AC stabilized voltage supply is the second voltage supply product developed by our
company.It adopts 8-digit CPU and its voltage stabilizing precision and delay time can be set according to needs.With
protective functions of time lag, over voltage inverse time -delay, under-voltage,overload,excess temperature,mechanical
fault etc.This type of product has the characteristics of liquid crystal display,blue screen backlight and interface dynamic
display,it can display the realtime working state of the machine,when there is any abnormal occurs, the interface will display
relative indications accompanied with long or short alarming sound.
For office equipment,testing equipment,medical equipment, industrial automation
equipment, household appliance,lighting system,communication system,etc.
|
Input voltage
|
Single-phase 140V-250V
Three phase Phase voltage 160V-250V Wire voltage 277V-430V |
Overload
protection value |
2.8 times of rated power
|
|
Output voltage
|
|
Protection value for
excess temperature |
|
|
Accuracy of
voltage stabilization |
|
Load power factor
|
0.8
|
|
Frequency
|
50/60Hz
|
Adjusting time
|
Input voltage changes for
10%,less than 1s |
|
Delay time
|
Long 180s,short 5s
|
Waveform distortion Dielectric strength |
No additional wave form distortion 1500V/1min |
|
Over-voltage
protection value |
|
Insulation resistance
|
|
|
Under-voltage
protection value |
180V/delay 5s
|
Working environment
|
|
