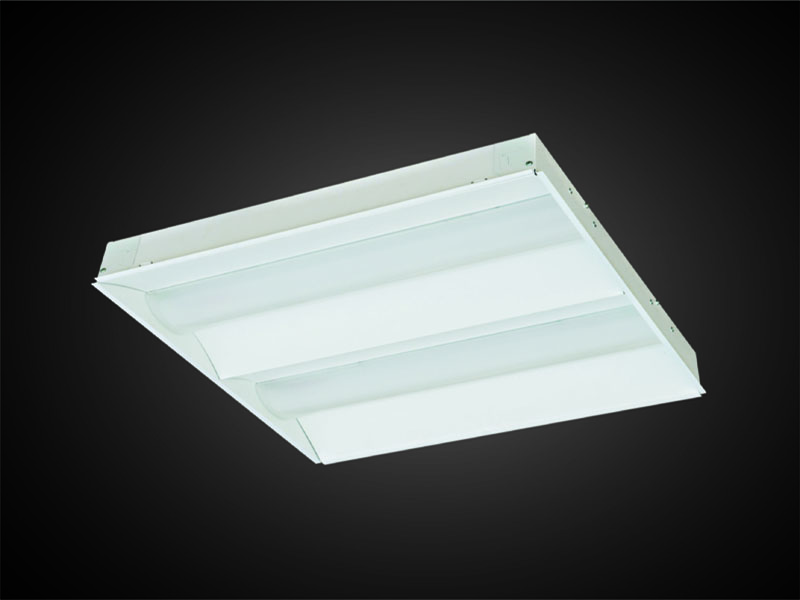

LED TROFFER - LDI02 Series

Inquiry

General

HOSSONI LDI02 series are premium-grad, recessed,

lay-in coffered T-Bar troffer with modern styling and
high visual comfort featuring dual shallow emi-round
lenses. For use with indoor applications where low glare,
high quality and ease of installation are required.This
luminaire comes with dual high-efficiency lenses for
enhanced performance. This luminaire’s low-profile design
makes it idea for shallow or obstructed plenum applications
and a wide, uniform light distribution.

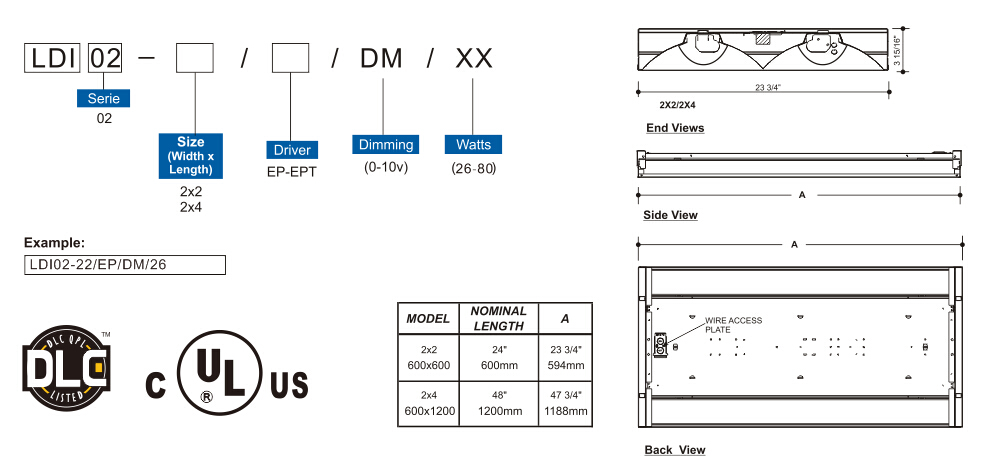

Model:LDI02-22/EP/DM/ 26、42、50

Specifications
MODEL	LDI02-22/EP/DM/26、42、50
WATTS	26W	42W	50W
NOMINAL LUMENS	2592/2717	3868/4053	4440/4650
EFFIENCY (LPW)	99.7/104.5	92.1/96.5	88.8/93
CCT	4000K/5000K	4000K/5000K	4000K/5000K
CRI	Ra > 80	Ra > 80	Ra > 80
POWER FACTOR	98	98	98
INPUT VOLTAGE	120-277V	120-277V	120-277V
COVER MATERIAL	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate
L80	>50,000	>50,000	>50,000

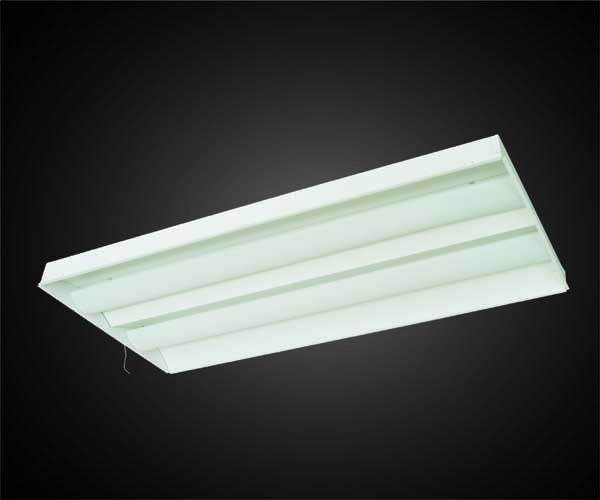

Model:LDI02-24/EP/DM/ 42、58、68、80

Specifications
MODEL	LDI02-24/EP/DM/26、42、50
WATTS	42W	58W	68W	80W
NOMINAL LUMENS	4111/4309	5353/5608	6079/6371	6832/7160
EFFIENCY (LPW)	97.9/102.6	92.3/96.7	89.4/93.7	85.4/89.5
CCT	4000K/5000K	4000K/5000K	4000K/5000K	4000K/5000K
CRI	Ra > 80	Ra > 80	Ra > 80	Ra > 80
POWER FACTOR	98	98	98	98
INPUT VOLTAGE	120-277V	120-277V	120-277V	120-277V
COVER MATERIAL	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate	Matte Polycarbonate
L80	>50,000	>50,000	>50,000	>50,000
