LED STRIP - LS SeriesClass: LIGHTING
5
Hits: 1646 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

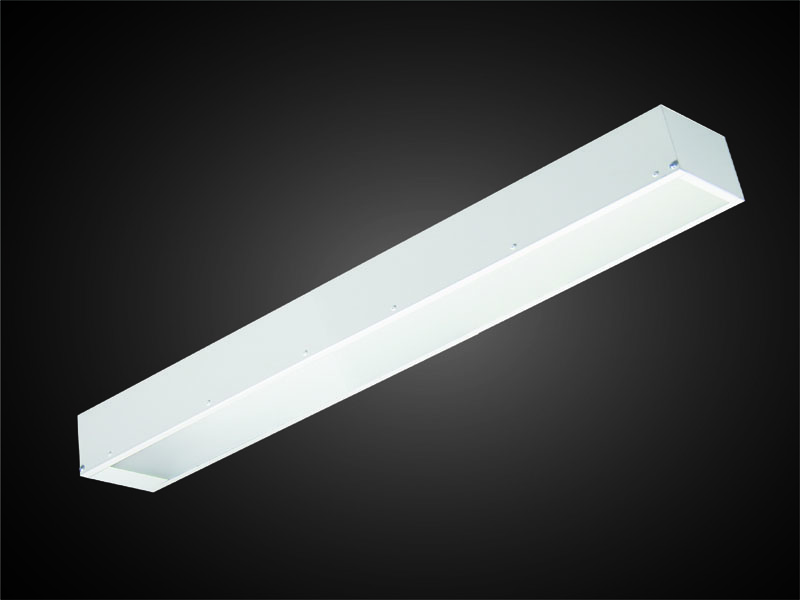

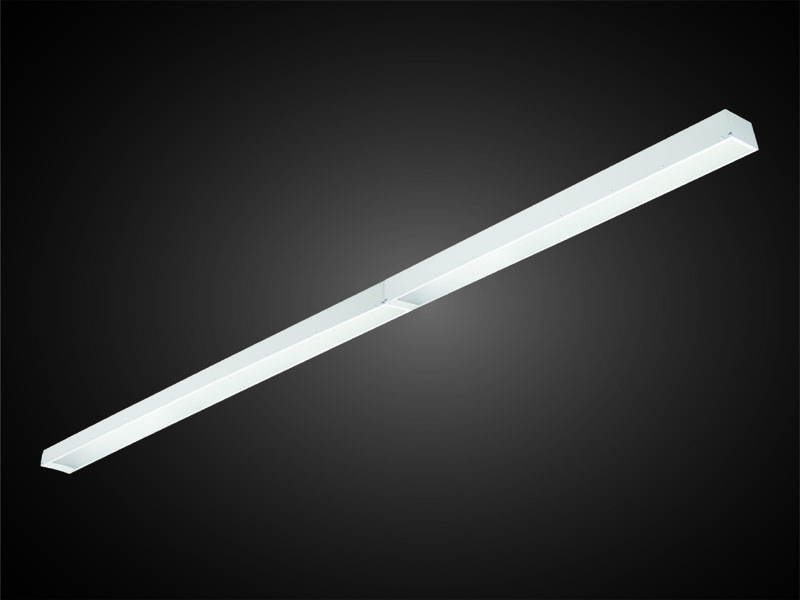

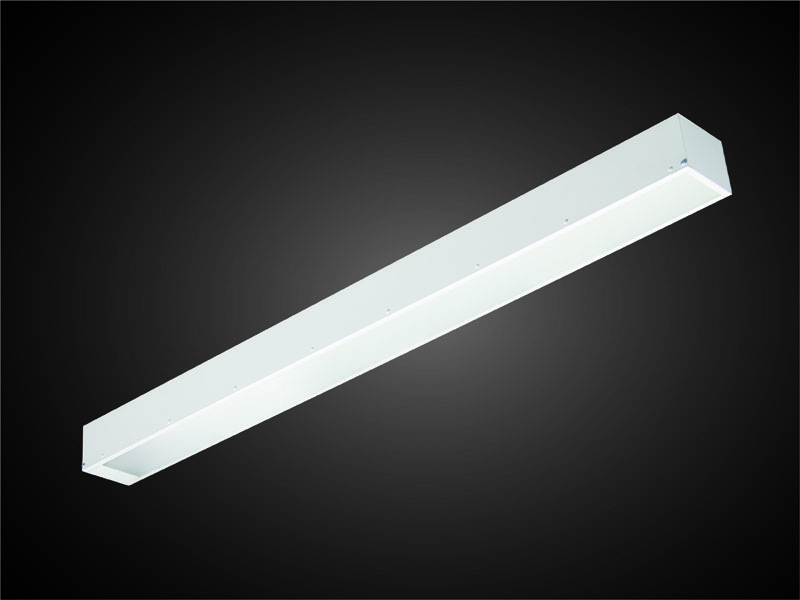

LED STRIP - LS SeriesLED STRIP - LS Series
Inquiry
General




      Upscale design, high-end performance, undeniable value.
HOSSONI LS LINEAR LED fixture is a narrow LED lens
strip light series. The small size of the LS fixture makes it
an Ideal choice for size restricted architectural applications.

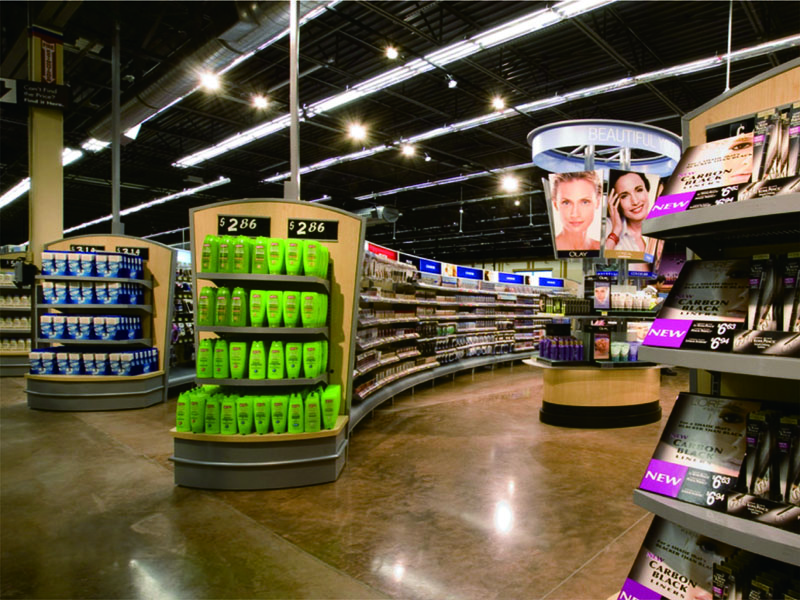

The LS Series can be the illumination solution in commercial,
industrial, retail and residential applications. Fixtures can be
used in storage/utility areas, coves, display cases, shops,
task and general area lighting.



Model:LS-4/EP/DM/26、42




Specifications
MODEL
LS-4/EP/DM/26、42
WATTS
26W
42W
NOMINAL LUMENS
2215/2327
3280/3452
EFFIENCY (LPW)
85.2/89.5
78.1/82.2
CCT
4000K/5000K
4000K/5000K
CRI
Ra > 80
Ra > 80
POWER FACTOR
98
98
INPUT VOLTAGE
120-277V
120-277V
COVER MATERIAL
PC
PC
L80
>50,000
>50,000
Model:LS-8/EP/DM/58、68、80



Specifications
MODEL
LS-8/EP/DM/58、68、80
WATTS
58W
68W
80W
NOMINAL LUMENS
4866/5110
5610/5888
6288/6584
EFFIENCY (LPW)
83.9/88.1
82.5/86.6
78.6/82.3
CCT
4000K/5000K
4000K/5000K
4000K/5000K
CRI
Ra > 80
Ra > 80
Ra > 80
POWER FACTOR
98
98
98
INPUT VOLTAGE
120-277V
120-277V
120-277V
COVER MATERIAL
PC
PC
PC
L80
>50,000
>50,000
>50,000
Model:LS-8/EP/DM/58、68、80





Specifications
MODEL
LS-8/EP/DM/58、68、80
WATTS
58W
68W
80W
NOMINAL LUMENS
4866/5110
5610/5888
6288/6584
EFFIENCY (LPW)
83.9/88.1
82.5/86.6
78.6/82.3
CCT
4000K/5000K
4000K/5000K
4000K/5000K
CRI
Ra > 80
Ra > 80
Ra > 80
POWER FACTOR
98
98
98
INPUT VOLTAGE
120-277V
120-277V
120-277V
COVER MATERIAL
Matte Polycarbonate
Matte Polycarbonate
Matte Polycarbonate
L80
>50,000
>50,000
>50,000
