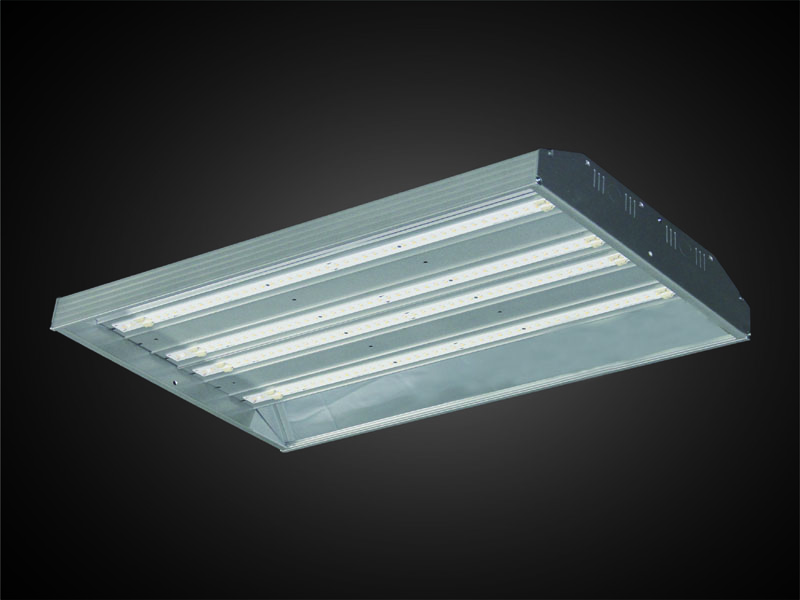

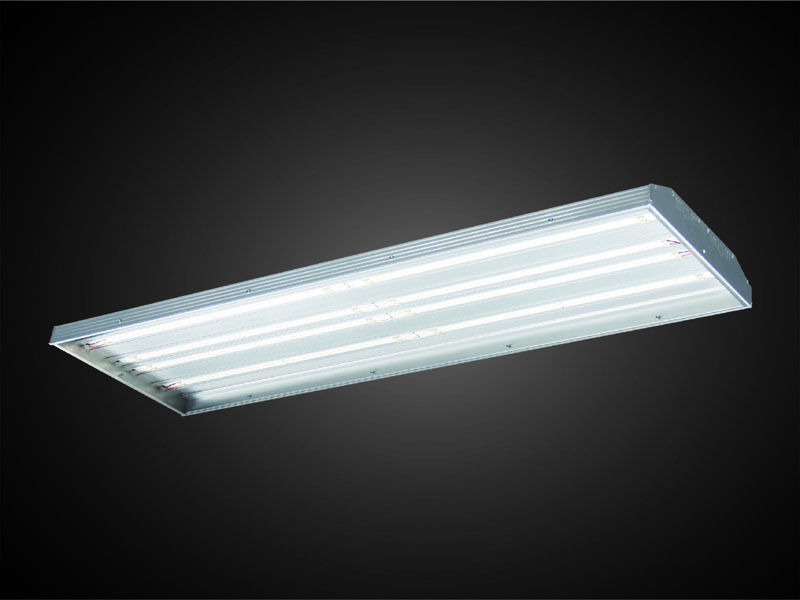

The HOSSONI LEDHB7/AL High Bay LED fixture is the
best of our LED technologies and our most popular
high bay product. The result is a high-performance,
quality, configurable LED luminaire. LEDHB7/AL is an
ideal one-for one replacement of conventional high
bay system such as HID and fluorescent.
LEDHB7/AL LED High Bay fixture use pure aluminum
housing ,ideal for large indoor spaces, including wa
-rehouses, gymnasiums and distribution centers that
require mounting heights from 15 to 50
feet, ambient
temperatures up to 131℃ F ( 55℃)
|

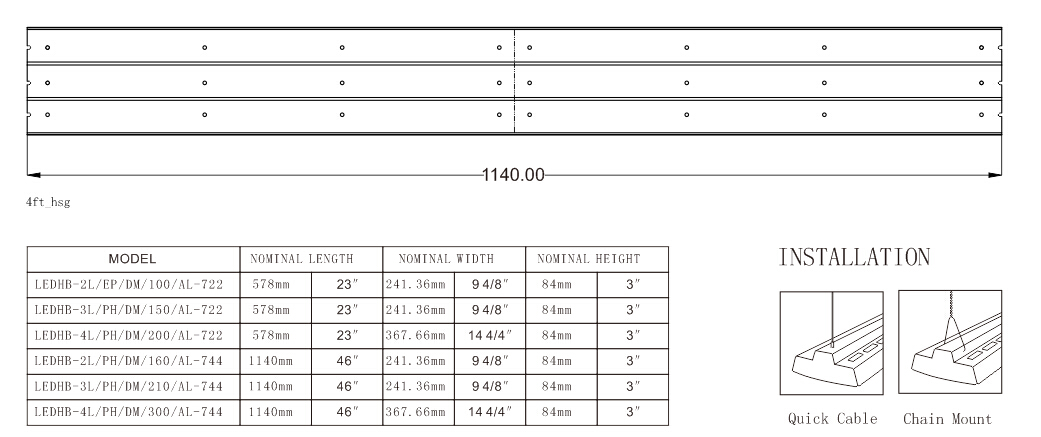

Specifications
|
|||
|
MODEL
|
LEDHB-2L/EP/DM/100/AL-722 LEDHB-3L/PH/DM/150/AL-722 LEDHB-4L/PH/DM/200/AL-722
|
||
|
WATTS
|
100W
|
150W
|
200
|
|
NOMINAL LUMENS
|
10330
|
15480
|
20560
|
|
EFFIENCY (LPW)
|
103.3
|
103.2
|
102.8
|
|
CCT
|
5000K
|
5000K
|
5000K
|
|
CRI
|
Ra > 80
|
Ra > 80
|
Ra > 80
|
|
POWER FACTOR
|
98
|
98
|
98
|
|
INPUT VOLTAGE
|
120-277V
|
120-277V
|
120-277V
|
|
COVER MATERIAL
|
Clear Polycarbonate
|
Clear Polycarbonate
|
Clear Polycarbonate
|
|
L80
|
>50,000
|
>50,000
|
>50,000
|
|
Specifications
|
|||
|
MODEL
|
LEDHB-2L/PH/DM/160/AL-744 LEDHB-3L/PH/DM/210/AL-744 LEDHB-4L/PH/DM/300/AL-744
|
||
|
WATTS
|
160W
|
210W
|
300W
|
|
NOMINAL LUMENS
|
18272
|
23898
|
34230
|
|
EFFIENCY (LPW)
|
114.2
|
113.8
|
114.1
|
|
CCT
|
5000K
|
5000K
|
5000K
|
|
CRI
|
Ra > 80
|
Ra > 80
|
Ra > 80
|
|
POWER FACTOR
|
98
|
98
|
98
|
|
INPUT VOLTAGE
|
120-277V
|
120-277V
|
120-277V
|
|
COVER MATERIAL
|
Clear Polycarbonate
|
Clear Polycarbonate
|
Clear Polycarbonate
|
|
L80
|
>50,000
|
>50,000
|
>50,000
|
