LED BULBS- HS-Q-B08 SeriesClass: LIGHTING
LED BULBS- HS-Q-B01 Series
Hits: 1535 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

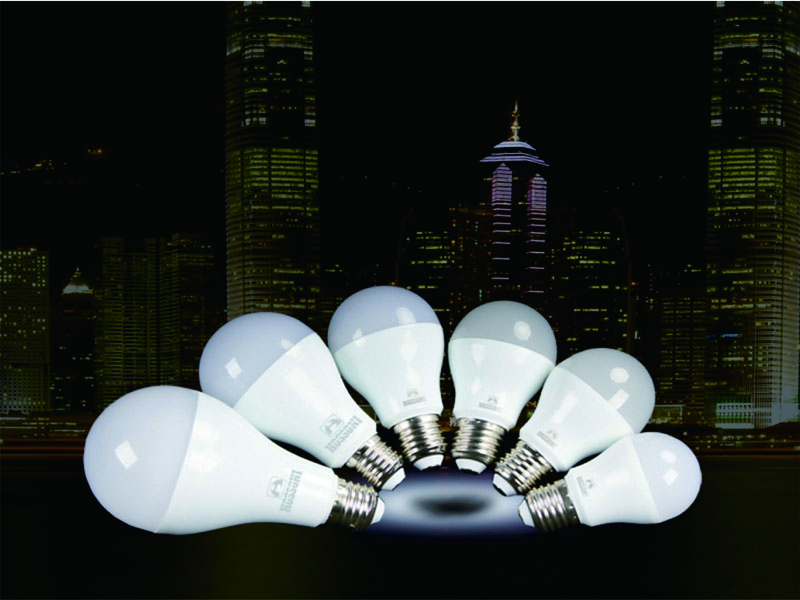

LED BULBS- HS-Q-B08 Series
Inquiry
General


HS-Q-B08 series of LED bulb with high quality LED light source,
use large angle, high transmittance, high proliferation PC cover
that have a larger area of light with more beautiful appearance.
the entire lighting effect of the ≥85Lm/W, CRI>80,the lamp body is
made of Design of heat conduction of flame etardant PBT plastic
shell and aluminum radiator heat welding, diffusion of PC aterial
cover,beautiful appearance, convenient installation, can directly
replace incandescent lamps and energysaving lamps.

Specifications

Working voltage
AC 85V~265V
DC12V~80V
Light source
High-light SMD LED
Power
3、5、7、9、12、14、16W
Installation
E26、E27、B22


Model

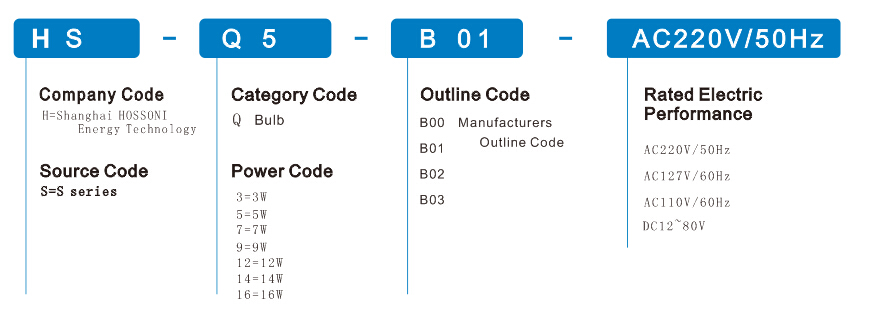

Model Specification
Power
Voltage
Flux
CCT
CRI
Size
HS-Q3-B01
3W

AC85~265V

DC12~80V

270-300 Lm

3000K

4000K

6500K

>80
Φ 50*93mm
HS-Q5-B01
5W
420-490 Lm
Φ 57*102mm
HS-Q7-B01
7W
640-670 Lm
Φ 57*102mm
HS-Q9-B01
9W
750-860 Lm
Φ 60*109mm
HS-Q12-B01
12W
1000-1160 Lm
Φ 68*127mm
HS-Q14-B01
14W
1190-1320 Lm
Φ 80*153mm
HS-Q16-B01
16W
1280-1400 Lm
Φ 80*153mm
Product Features
Design of heat conduction of flame retardant PBT plastic shell and aluminum
radiator heat welding, diffusion of PC material cover, high-grade appearance,
Isolated power supply, 85~265Vac super wide voltage design;
Built-in constant-current, source driving circuit, short circuit, open circuit,
temperature protection function;
The increase in diffusion reflection intensifying design illuminance；

E26;E27;B22
