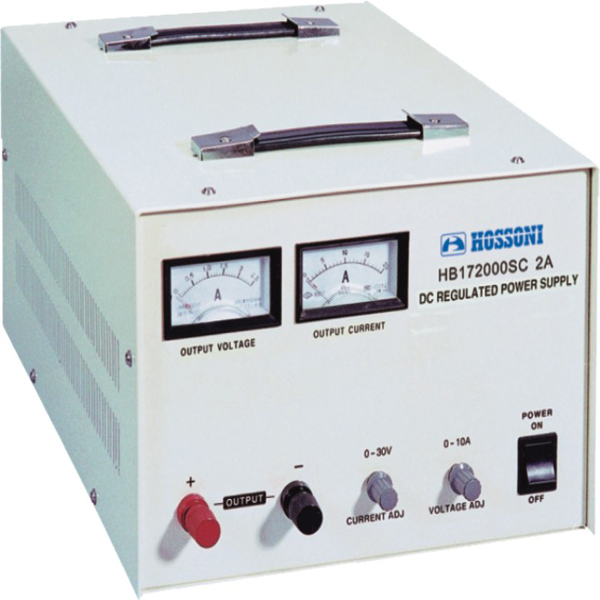

HB17600~2000SC1~3A series DC stabilized power supply for high voltage outputClass: DC POWER SUPPLY
图形2
Hits: 1399 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output, high stability, high efficiency
● High voltage output
● Double-display for voltage and current (pointer, quantity, LCD)
● Short circuit protection, current-limiting protection, the current-limiting
     point can be adjusted randomly
● Plastic-sprayed steel panel
Main technical indexes
Output voltage : 0~200V continuously adjustable
Output current : 0~3A continuously adjustable
Power supply effect : CV≤1×10-4＋5mV      CC≤1×10-3＋15mA
Load effect : CV≤1×10-4＋15mV      CC≤1×10-3+30mA
Ripple voltage : CV≤5mVrms       CC≤20mArms
Volume and weight : 44×30×22cm       10~21kg
