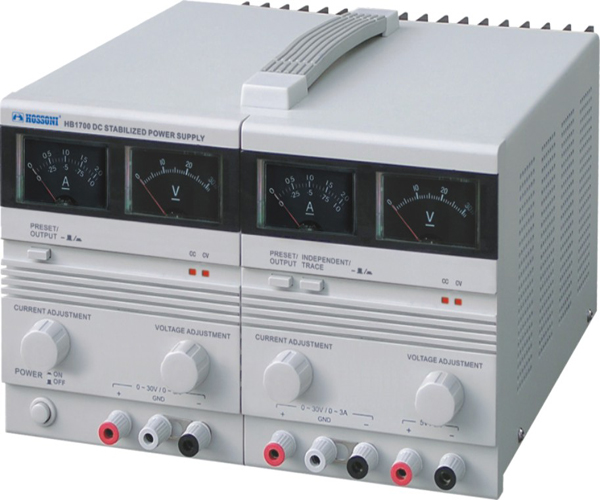

● Four pointers indicate voltage and current at the same time.
● Can add fixed 5V2A power supply
● Auto transfer between voltage stabilization and current stabilization
● Output voltage of double circuits can be used in series or in parallel, also can be
used for tracing of master and slave circuits , besides , it also can used as
adjustable and symmetrical positive and negative power supply.
● Short circuit protection, current-limiting protection, the current-limiting point can
be adjusted randomly
● Output may be preset
● Frame of full plastic, novel and nice appearance
Main technical indexes
Model
Output
voltage
Output
current
HB17301SC1A
0~30V
HB17301SC2A
HB17301SC3A
HB17301SC5A
Power supply effect : CV≤1×10-3＋5mV
CC≤1×10-2＋1mArms
Load effect : CV≤1×10-3＋15mVrms
CC≤1×10-2+30mArms
Ripple and noise : CV≤5mVrms
CC≤20mArms
Volume and weight : 30×24×15cm 5.6-8kg
Product detailed material (PDF)
