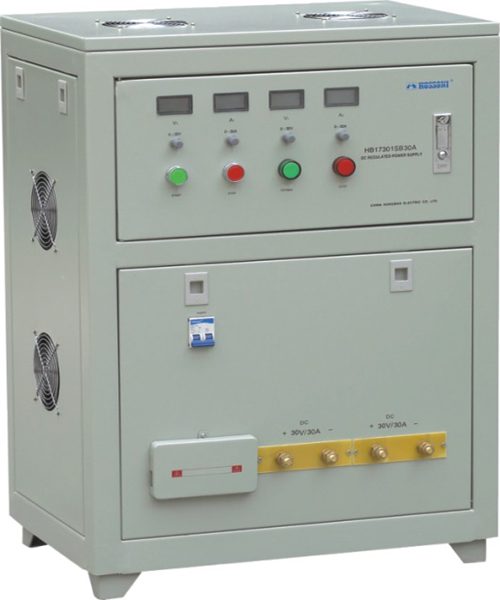

HB17301SB series superpower DC stabilized power supply for single circuit outputClass: DC POWER SUPPLY
图形3
Hits: 1521 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output
● Output high voltage and current
● Double-display for voltage and current (pointer, quantity, LCD)
● Short circuit protection, current-limiting protection, the current-limiting
     point can be adjusted randomly
● Plastic-sprayed steel panel
Main technical indexes
Output voltage : 0~30V continuously adjustable
Output current : 40~100A continuously adjustable
Power supply effect : CV≤5×10-4          CC≤5×10-3
Load effect : CV≤1×10-3          CC≤1×10-2
Ripple voltage : CV≤5mVrms          CC≤20mArms
