● Four light-emitting diodes (LED) indicate output voltage and current of
double circuits respectively.
● Auto transfer between voltage stabilization and current stabilization
● Output voltage of double circuits can be used in series or in parallel, also
can be used for tracing of master and slave circuits , besides , it also can
used as adjustable and symmetrical positive and negative power supply.
● Short circuit protection, current-limiting protection, the current-limiting
point can be adjusted randomly
● Plastic-sprayed steel enclosure and panel, novel and nice appearance
Main technical indexes
Model
Output
voltage
Output
current

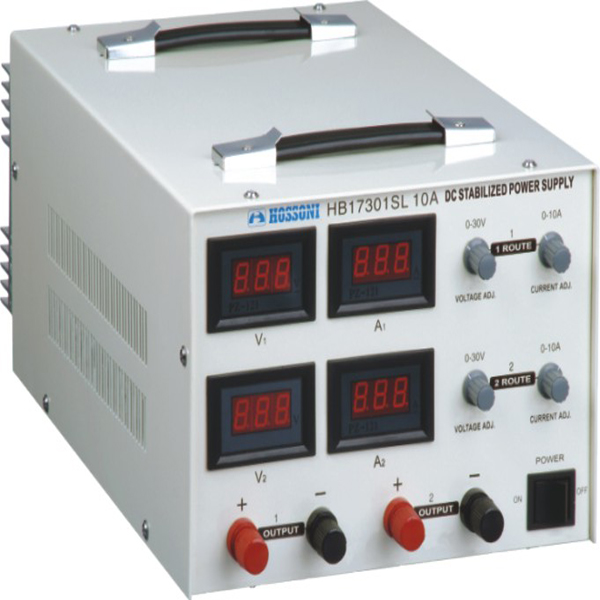

HB17301SL7A
0~30V
0～7A
HB17301SL10A
0～10A
Power supply effect : CV≤2×10-4＋3mV
CC≤2×10-3＋3mA
Load effect : CV≤2×10-4＋10mV
CC≤5×10-3+3mA
Ripple and noise : CV≤3mVrms
CC≤10mArms
Volume and weight : 44×30×22cm 10.5-18kg
Product detailed material (PDF)
