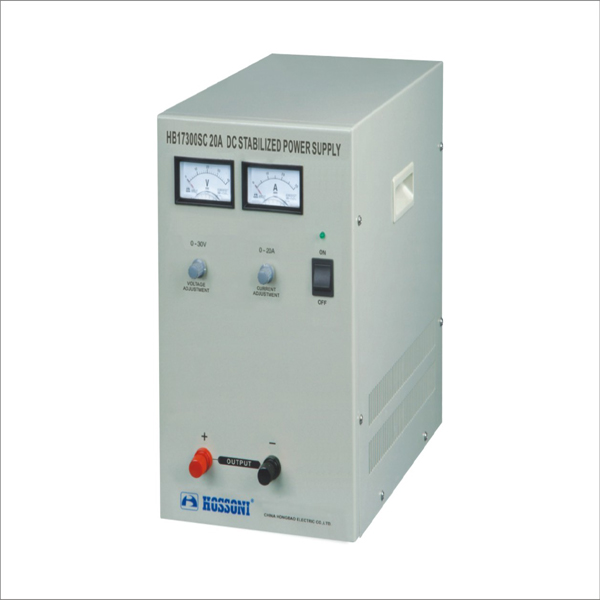

HB17300SC20~30A series high-powerClass: DC POWER SUPPLY
333
Hits: 1469 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output, high stability, high efficiency
● High current output
● Double-display for voltage and current
● Short circuit protection, current-limiting protection, the current-limiting
     point can be adjusted randomly
● Top plastic-sprayed steel panel

Main technical indexes

utput voltage : 0~30V continuously adjustable
Output current :0~30A continuously adjustable
Power supply effect :CV≤1×10-4＋5mV CC≤1×10-3＋15mA

Load effect : CV≤1×10-4＋15mV  CC≤1×10-3+30mA

Ripple voltage : CV is less than 5mVrms  CC  is less than 20mArms
Volume and weight : 44×25×34cm      30-38.2kg
