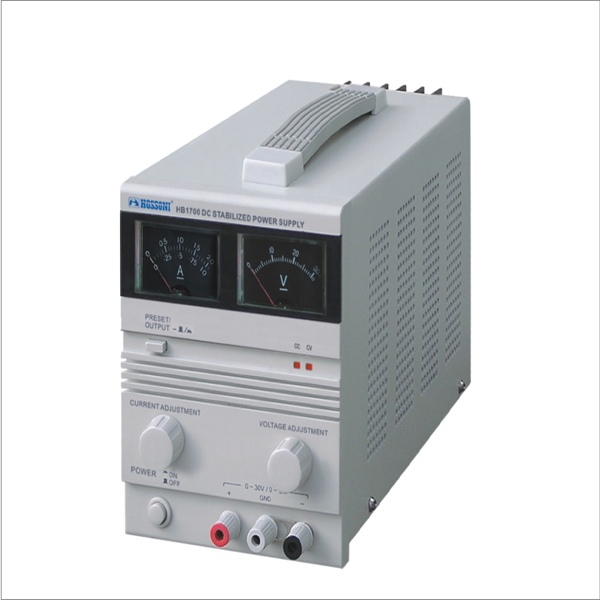

HB17300SC1~5A seriesClass: DC POWER SUPPLY
11
Hits: 1639 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output, high stability, high efficiency
● Double-display for voltage and current
● Auto transfer between voltage stabilization and current stabilization
● Short circuit protection, current-limiting protection, the current-limiting
    point can be adjusted randomly
● Output may be preset
● Frame of full plastic, novel and nice appearance

Main technical indexes


Model
Output
voltage
Output
current
HB17300SC1A
0~30V
0~1A
HB17300SC2A
0~2A
HB17300SC3A
0~3A
HB17300SC5A
0~5A
Power supply effect : CV≤1×10-4＋0.5mV
                                  CC≤2×10-3＋1mA
Load effect : CV≤1×10-4＋2mV
                     CC≤2×10-3+3mA
Ripple and noise : CV≤1mVrms
                              CC≤5mArms
Volume and weight : 23×12×15cm   3-4Kg
