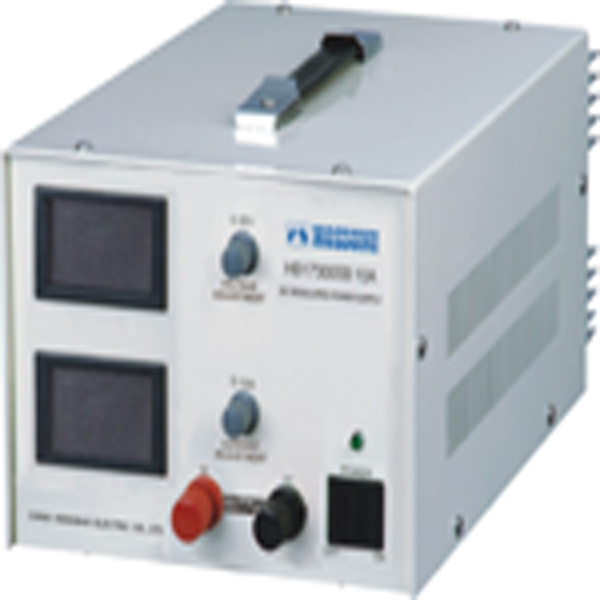

HB17300SB7~15A series adjustable DC stabilized power supplyClass: DC POWER SUPPLY
7
Hits: 1537 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output, high stability, high efficiency
● High current output
● Double LCD display for voltage and current
● Auto transfer between voltage stabilization and current stabilization
● Short circuit protection, current-limiting protection, the current-limiting
     point can be adjusted randomly
● Plastic-sprayed steel frame, novel and nice appearance
● According to users' requirements, the output of fixed voltage and low
    current of one circuit can be customized.
Main technical indexes

Model
Output
voltage
Output
current
HB17300SB7A
0~30V
HB17300SB10A
HB17300SB15A

Power supply effect : CV≤2×10-4＋3mV
                                   CC≤2×10-3＋3mA
 Load effect : CV≤2×10-3＋10mV
                      CC≤5×10-3+3mA
Ripple and noise : CV≤3mVrms
                              CC≤10mArms
Volume and weight : 38×22×17 cm
                                 11kg-15kg
