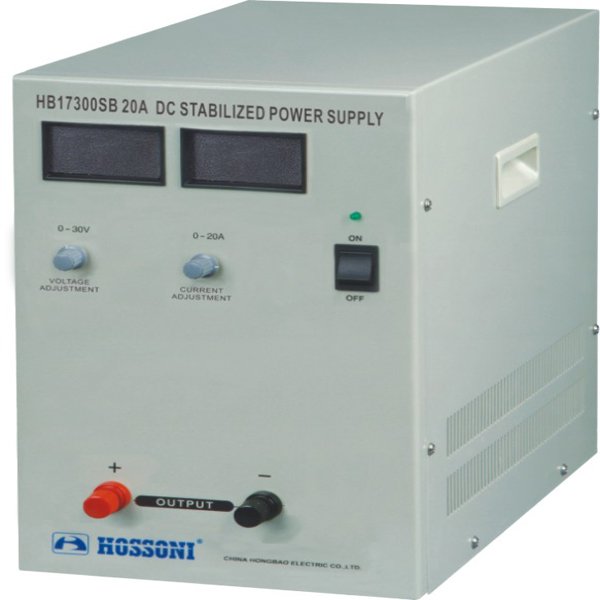

HB17300SB20~30A series high-power adjustable DC stabilized power supplyClass: DC POWER SUPPLY
8
Hits: 1479 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

Inquiry
Features
● Single circuit output, high stability, high efficiency
● High output current
● Double LCD display for voltage and current
● Short circuit protection, current-limiting protection, the current-limiting
     point can be adjusted randomly
● Top plastic-sprayed steel panel
Main technical indexes
Output voltage : 0~30V continuously adjustable
Output current : 0~30A continuously adjustable
Power supply effect : CV≤1×10-4＋5mV       CC≤1×10-3＋15mA
Load effect : CV≤1×10-4＋15mV        CC≤1×10-3+30mA
Ripple voltage :  CV  is less than 5mVrms         CC is less than 20mArms
Volume and weight : 44×25×34cm          30-38.2kg
