HBClass: VOLTAGE STABILIZER(AVR)
HB
Hits: 1587 Print this page Fav this page E-mail us: hossoni1983@vip.163.com Skype: hossoni1983

Product detailed material (PDF)

HB
Inquiry
General

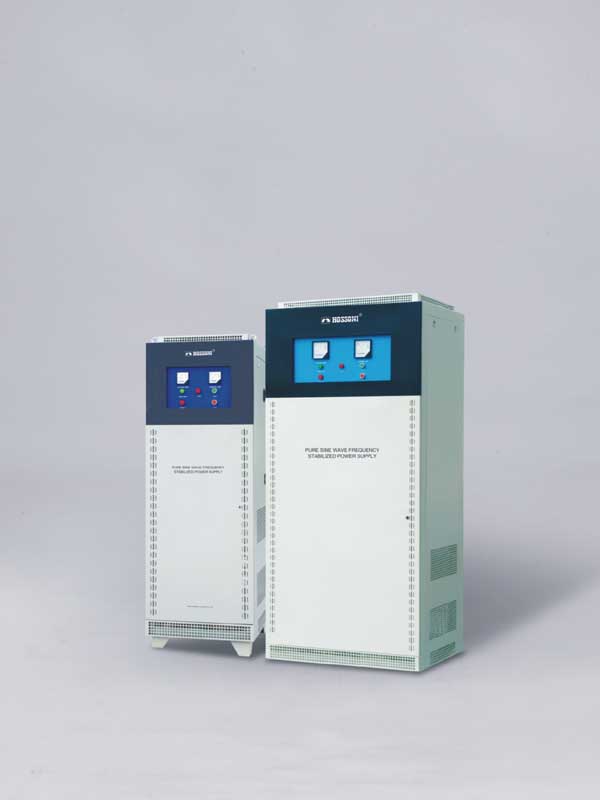

          HB Pure Sine Wave Voltage and Frequency Stabilized Power Supply is comprised of superior grade of Frequency transformer,imported

IGBT or VMOS ducts,superior intelligent microcomputer CPU,SPWM and so on. Pure sine wave output,and it can be connected with
any kind of loads,such as Resistance capacitive load and inductive load. With quick reaction,anti-disturbing,strong adaptable and great
practicable ability.It is the best choice to be used on the occasion of bad electrical environment.

Main technical features



          AC input voltage : Single phase 140-240V  Three phase 240-450V 35-60Hz

Output voltage : Single phase 220V±3%  50 or 60 Hz
Three phase 380V±5%   50 or 60 Hz
Efficiency:  ≥90% (power grade 50KVA above)
Overload protection:    When overload were ＜120%，the device will shut automatically within 5 seconds
                                  When overload were ＞120%,the device will shut automatically within 1 second di
Protection against short circuit : When short ciruci occurred,the device will indicate and shut down automatically within in 1 second
Undervoltage Protection:   When voltage lower than 140V

Model and spec
无标题文档
Serial Model
Single phase HB-500VA
   16
HB-1kVA
   28
HB-1.5kVA
   35
HB-2kVA
   42
HB-2.5kVA
   46
HB-3kVA
   50
HB-4kVA
   60
HB-5kVA
   75
HB-6kVA
   85
HB-10kVA
   100
HB-15kVA
   130
HB-20kVA
   200
HB-25kVA
   240
HB-35kVA
   280
HB-50kVA   350
