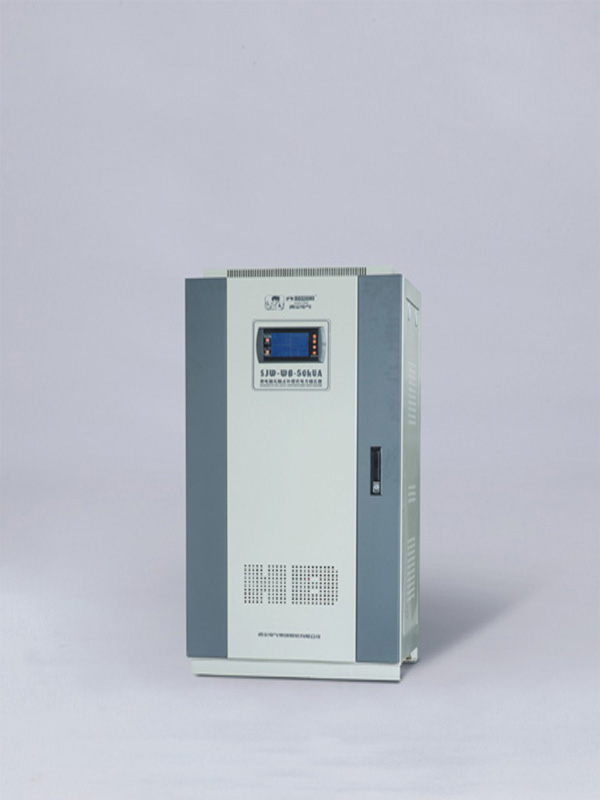

DJW - WB, SJW - WB  series  single - phase  and  three - phase  microcomputer  contactless  compensation voltage stabilizer
( hereinafter referred to as voltage stabilizer ) is  the  latest high - power  AC  voltage  stabilization  power supply,  designed
with  the  international  advanced  technology and on the basis of our country national conditions. It integrates  sophisticated
compensation  mode  of  compound  windings,  contactless  switch  and  technology  of  microcomputer  control  AC  voltage
regulation, has the features of high efficiency, energy-saving, fast adjustment, automatic balance of three phases, no
machinery malfunction or carbon brush wearing and has the function of time delay,  over voltage or under  voltage  alarming
and protection. In addition, this voltage stabilizer can successfully prevent  contactless  switch  being  damaged  for  co - state
current impact and over voltage produced by transient  running  of system  and unit,  has strong instantaneous overload ability,
so  it  can greatly improv e the reliability of system operation.

● Range of input voltage: +20%
● Range of output voltage adjustment: -5%
● Accuracy of voltage stabilization: ± 2.5%
● Efficiency: >95%
● Absolute value of load power factor :>0.7
● Strain time: 0.2~0.5S

● Split-phase adjustment, automatic balance of three phases
● Can bear instantaneous overload of 1.5-2 times
● Contactless, no noise, no machinery and carbon brush abrasion
● With the function of protection against over voltage, under voltage and phase failure,
     fault diagnosis, signal display as well as alarming.
● Standard power supply: single-phase 220V, three-phase 380V, frequency 50-60Hz

Range of voltage stabilization(V)	Accuracy of voltage stabilization(%)	Model
	2.5	DJW-WB-10KVA	10	45
		DJW-WB-15KVA	15	68
		DJW-WB-20KVA	20	91
		DJW-WB-30KVA	30	136
		DJW-WB-50KVA	50	227
		DJW-WB-60KVA	60	273
		DJW-WB-80KVA	80	364
		DJW-WB-100KVA	100	455
	2.5	SJW-WB-10KVA	10	15
		SJW-WB-15KVA	15	22
		SJW-WB-20KVA	20	30
		SJW-WB-30KVA	30	45
		SJW-WB-50KVA	50	76
		SJW-WB-100KVA	100	152
		SJW-WB-150KVA	150	227
		SJW-WB-180KVA	180	273
		SJW-WB-200KVA	200	303
		SJW-WB-225KVA	225	333
		SJW-WB-250KVA	250	379
		SJW-WB-300KVA	300	455
		SJW-WB-400KVA SJW-WB-500KVA	300	606
		SJW-WB-500KVA	500	768
